Neo TH7

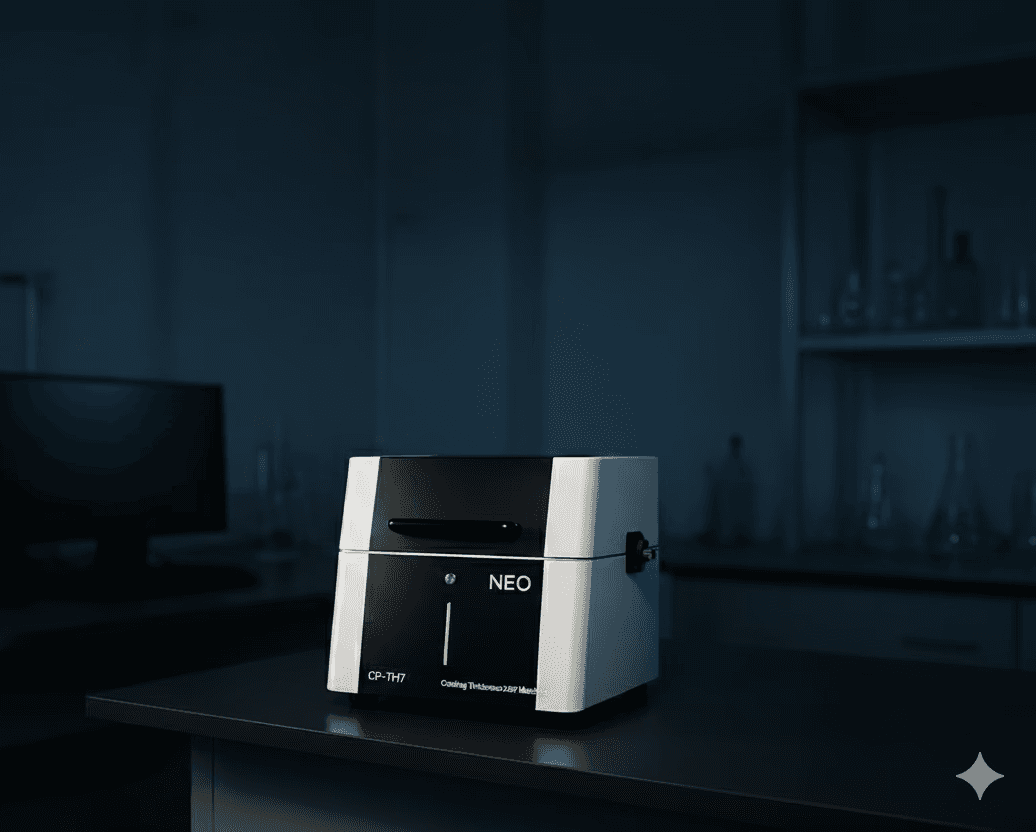

The NEO CP-TH7 is the latest X-ray fluorescence spectrometer launched by CIPU Technology, designed for the analysis and detection of multi-layer complex coatings. It is highly suitable for measuring electroplating thickness in small areas.
Compact X-Ray Fluorescence for Small Area Testing
The NEO CP-TH7 is a compact, benchtop XRF spectrometer designed specifically for micro-area testing and quality assurance of coatings on electronic, automotive, and hardware components. Its accurate, fast, and stable performance ensures precise thickness and elemental composition analysis.
Product Introduction
Accuracy
RSD <1% Accuracy: Measurement stability is highly precise.
Speed
Fast 10-30s Test Time: Quickly analyzes complex samples.
Stability
Excellent Stability: Data consistency using a powerful FP algorithm.
Advantage
Top Illumination
Allows precise XRF analysis on small local areas
High-Resolution Imaging
12-megapixel clarity easily identifies the test spot.
Versatile Detection
Measures 1-5 layers and plating solution content.
Multi-Collimators
Six standard spot sizes for all material testing.
Easy Positioning
Manual XY platform for simple test area setup.
Benefits
Comprehensive Data: Displays element composition as ratio, atomic percentage, or mass percentage.
Adopts the MultiRay-FP algorithm for data stability.
Allows one-click printing of result reports with custom headers.
Displays statistical data including $\text{RSD}$, max, min, and average values.
Key Details:
Ultra-Low Limit: XRF detection limit of
0.001 µm.
Long Tube Life: X-ray tube life exceeds 20,000 hours.
Flexible Source: Standard Mo target with optional W and Rh targets.
Recommend users
Electroplating Thickness
Hardware & Connectors
Electronics & Cables
Solution Analysis
Technical Specifications
NEO CP-TH7 | SPECIFICATIONS |
|---|---|
Detection Items | Single, Multi-layer, Composite, Alloy Substrate, Glass, Plastic coatings, and Electroplating solution. |
Detection Layer Range | 1-5 layers. |
X-ray Tube | Standard Mo target $0.1mm micro-focus X-raytube (optional W and Rh). |
Detector | Electrically cooled Si-PIN (145 += 5eV), optional SDD (1255 += eV). |
Collimation System | 6 Spot sizes: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 1mm. |
Camera Positioning | 12-megapixel resolution, crosshair, adjustable focus. |
Sample Chamber | 300mm*300mm*120mm. |
Overall Dimensions | 500mm*380mm*360mm. |
Weight | 42Kg. |
Radiation Protection | Compliant with GB18871-2002 and GBZ115-2002 standards. |
