Neo Insight

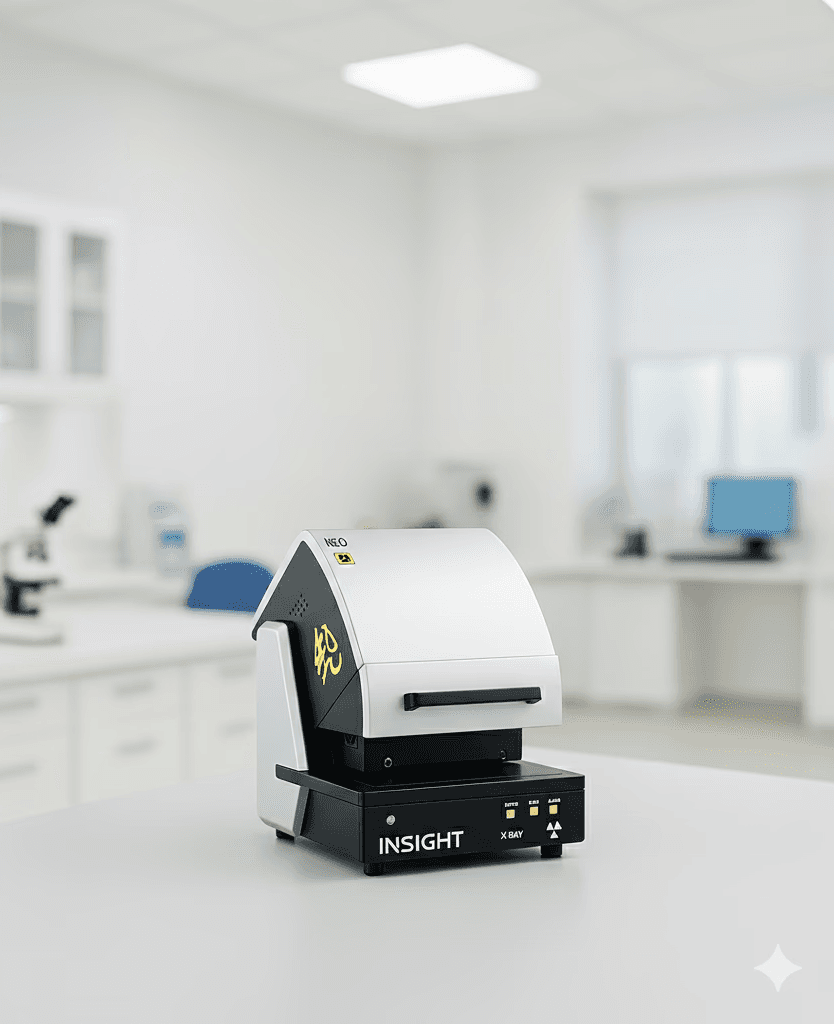

The INSIGHT coating analyzer is an Up irradiation design X-ray fluorescence (XRF) instrument from Neo Instruments Co. It is characterized by high sensitivity, non-destructive tests, and high precision, capable of both elemental analysis and coating thickness measurement for single and multi-layer systems.
Compact X-Ray Fluorescence for Micro-Beam Analysis
The NEO INSIGHT is an advanced XRF spectrometer utilizing a micro-focus X-ray tube to collect and gather the source into a micro beam spot, delivering high spatial resolution. Its accurate, fast, and stable performance makes it ideal for quality control in demanding electronics and manufacturing environments.
Product Introduction
Accuracy
Accurate quantification, reliable analysis.
Speed
Rapid Measurement: Analysis in just seconds.
Stability
Excellent Stability: Highly consistent, repeatable results.
Advantage
Fast Analysis
Measures thickness and composition instantly.
Improved Efficiency
Faster preparation, automated measurement.
Large Measuring Chamber
Accommodates large PCBs and complex parts.
Easy to Operate
One-key testing, minimal training needed.
Safety Protection
Multi-protection, zero radiation leakage.
Benefits
Helps customers reduce material costs through precise quality control.
Meets industrial specifications like IPC-4552B via efficient XRF analysis.
Ideal for element analysis of complex, uneven, or small samples.
Improves productivity and ensures compliance to specifications, avoiding the risk and costs associated with scrap or rework.
Key Details:
5-Layer Analysis: Measures 4 coatings and 1 substrate.
Micro-focus X-Ray: 50W tube for high-res analysis.
Smart Software: Auto-measurement, focus, and material ID.
Recommend users
PCB/Electronics Manufacturers
Jewelry Manufacturers
Metal Finishing Plants
Technical Specifications
NEO INSIGHTS | Specifications |
|---|---|
Measurement Structure | Top-down structure, XYZ platform, MUTI-FP algorithm |
Scope of Element | Na(11)-Fm(100) |
Analysis Layer No. | 5 layers (4 coating layers + 1 substrate) |
X-ray Tube | 50 W (50k , 1 mA micro-focused W/Pd tube |
The detector | Si-Pin / High Sensitivity Large AreaSDD(Optional) |
The camera | High resolution CMOS color camera, 5 megapixels |
Magnification | 40x–160x |
Overall Dimensions | 664 * 761 * 757mm |
The weight of the | 120kg |
Rated power | 150W |
