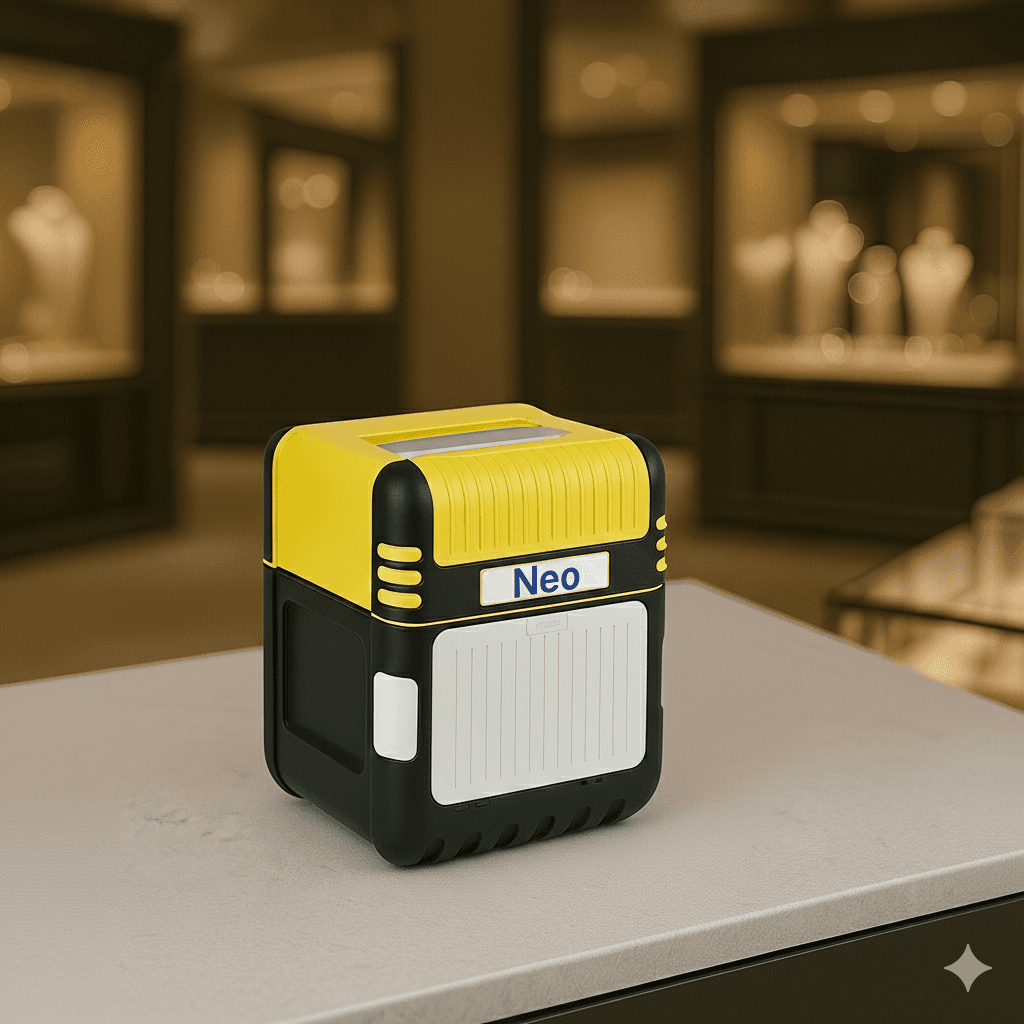

NEO GOLD PG7
The PeDX precious metal analyzer is designed for quick and accurate analysis of precious metal compositions, including gold, platinum, and palladium.It provides results immediately and is characterized by its portability, high reliability, and non-destructive analysis capability
Compact X-Ray Gold Testing & Analysis Solution
The PeDX Portable Precious Metal Analyzer is a compact XRF device that provides on-the-spot testing capabilities for precious metals. Its light and compact design allows users to conveniently bring it to any testing site. The accurate, fast, and portable analyzer uses a built-in camera for intuitive sample positioning, ensuring accurate X-ray irradiation and operation.
Product Introduction
Accuracy
High Precision: Accuracy up to +=0.01% (PeDX G7).
Speed
Fast Analysis: Provides results in seconds.
Stability
Reliable Results: Adopts FP algorithm to reduce error and improve test accuracy.
Advantage
Non-destructive
Analyzes precious metals with no need for sample pre-processing.
Portability
Small volume and light weight make it easy to carry for field use.
Powerful Data
Automatically processes, analyzes, and generates reports on test data.
Simple Operation
Easy to master quickly, even for non-professionals.
High Accuracy
XRF technology provides reliable purity and composition data.
Benefits
Reporting Flexibility: Customizable report content and output formats (EXCEL, PDF).
Industry Compliance: Meets high industry standards for jewelry showrooms, factories, and test agencies.
Intuitive Use: Built-in camera provides intuitive sample positioning and image recording.
Key Details:
Lightweight: Weighs 4.6KG (without battery).
Display: Features a 5.7-inch industrial-grade resistance touch screen.
Data Output: Supports data printing via Bluetooth printer and USB transmission.
Recommend users
Jewelry Factories
Jewelry Manufacturers
Pawn Brokers
Test Agencies
Technical Specifications
NEO GOLD PG7 | SPECIFICATIONS |
|---|---|
Type | Portable |
Weight | 4.6KG( without battery ) |
size | 200 mm x 200mm x 268mm (L x W x H) |
Sample chamber size | 170 mm x 130 mm x 60mm (L x W x H) |
Detection Range | AI - U |
Language | Multi languages including Chinese, English |
Detector | PeDX G5:Si-Pin detector |
Optical Structure | Oblique |
Tube window | Beryllium(Be) window |
Collimator | Equipped with 1.5mm collimator |
Accuracy | PeDX G5:+=0.03% |
Display system | 5.7 -inch industrial-grade resistance background noise, |
Computer parameter | I, MX 6 Quad, quad-core Cortex-A9 processor |
Data printing | Bluetooth printer |
Data transmission | Build-in 32G system memory ,USB, Bluetooth |
Algorithm | Adopts curve calibration method and fundamental parameter(FP) method to remove background difference, reduce error and improve test accuracy. |
Camera | Built-in camera provides intuitive sample positioning and image recording function, ensuring accurate X-ray irradiation and operation |
