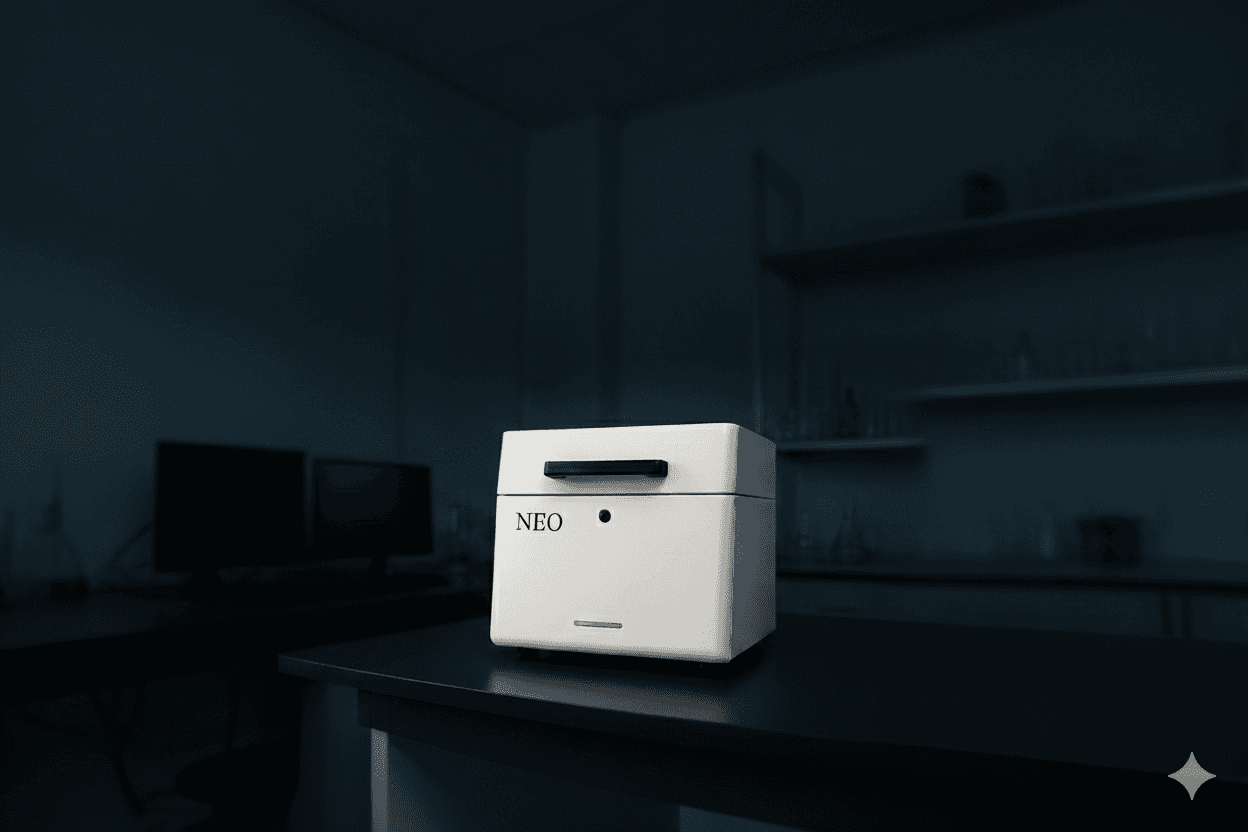

NEO N9 X-Ray Fluorescence Spectrometer
The NEO N9 is an XRF spectrometer developed for the $RoHS testing industry, primarily used for the detection of hazardous substances in electronic and electrical products.
Compact X-Ray Fluorescence for RoHS Compliance Testing
The NEO N9 is a highly efficient, integrated XRF analyzer focused on supply chain inspection in the electronics and consumer product industries. Its advanced features, including the safety lock function and modular shielding, ensure reliable and safe operation. The accurate, fast, and compact N9 helps enterprises quickly test materials and reduce environmental protection risks.
Product Introduction
Advantage
Benefits
Helps enterprises reduce environmental protection risks (RoHS).
Integrated industrial computer provides a longer service life.
Integrated i5 CPU and 8GB RAM for high-speed data processing.
Key Details:
Integrated i5 CPU and 8GB RAM/256GB SSD.
50 W Mo-target X-ray tube.
6 program-controlled collimated spot sizes and 6 filter system.
Recommend users
3C Electronics
Toys & Plastics
Electrical Products
Technical Specifications
NEO C1 | SPECIFICATIONS |
|---|---|
Analytical Range | S - U |
Test Items | Heavy metals in RoHS Directive: Pb, Cd, Hg, Br, Cr
|
Sample Type | Solid, Liquid, Powder |
X-Ray Tube Life | ≥20,000 hours |
Test Time | 60s - 300s (automatically adjusted by software) |
Collimation System | Spot sizes: φ0.3mm, 1mm, 3mm, 5mm, 6mm, 8mm (automatically selected by software) |
Camera Positioning | 8MP |
Weight | 38 kg |
Dimensions | 450mm × 400mm × 360mm (Sample chamber size: 450mm × 380mm × 85mm) |
Environmental Range | Temperature: 15°C - 30°C, Humidity: ≤75% |
Integrated Industrial Computer | Intel(R) i5 CPU, 8GB RAM, Windows 10 OS |
Display | 22-inch monitor |
Data Storage | 250GB (sufficient to store billions of data records) |
