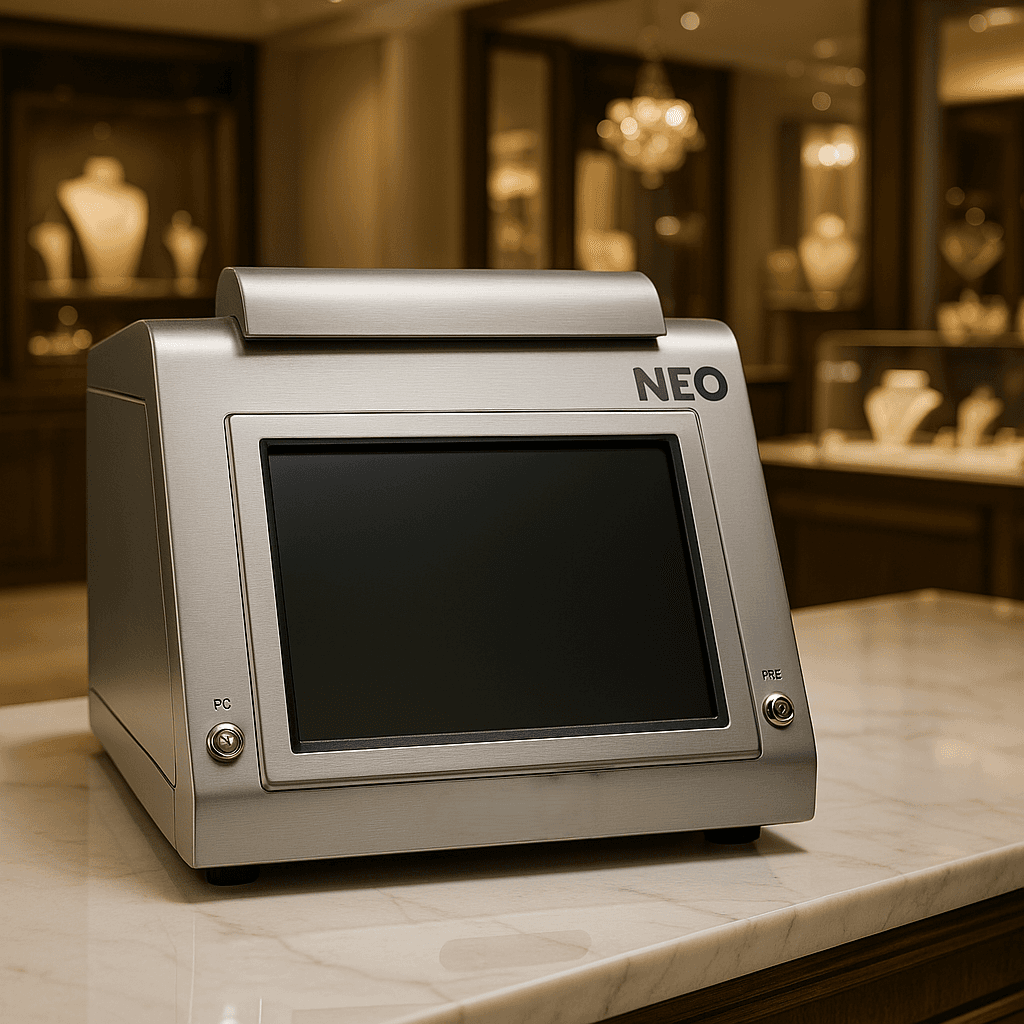

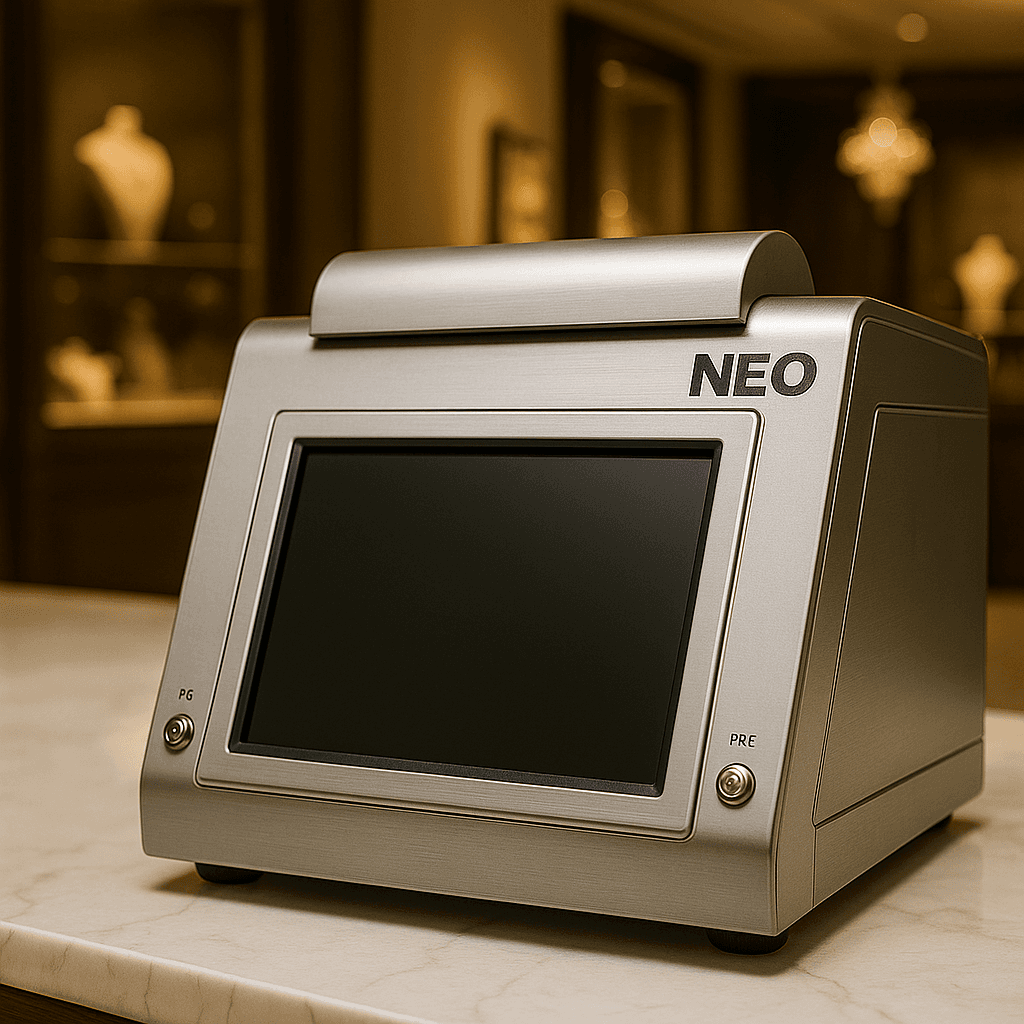

NEO ALFA PC
The NEO ALFA PC is a high-precision benchtop Energy-Dispersive X-ray Fluorescence (EDXRF) analyzer designed for accurate and non-destructive testing of gold, silver, and other precious metals. Its user-friendly software enables multi-element analysis for various applications.
Compact X-Ray Gold Testing & Analysis Solution
Accurate. Fast. Compact.
The NEO ALFA Mini-X is a precision XRF analyzer for gold and precious metal testing. With its compact design, high-resolution detection, and simple operation, it’s ideal for hallmarking centers, jewelry shops, and testing labs.
Detector Options: Proportional Counter | Si-PIN | SDD
Product Introduction
Accuracy
Detects gold and precious metal content with ±0.01% precision
Speed
Designed for continuous operation with air-cooled X-Ray tube
Stability
Compact 30 kg unit ideal for desktop or mobile lab use
Advantage
High-Performance X-Ray Tube
Long-life, high-efficiency tungsten target with 50W power for consistent and accurate results.
High-Resolution Imaging
Integrated 1.2MP CCD camera for real-time viewing and sample positioning.
Precise Gold Analysis
Capable of detecting purity levels from 30% to 99.99% — perfect for hallmarking and jewelry analysis.
Compact & Lightweight Design
Small form factor (460×380×460 mm) with easy integration into any workspace.
Global Power Compatibility
Comes with wireless printing support. Generate branded reports instantly with a single tap on the touch interface.
Benefits
Preserves the integrity of every sample—no damage or alteration.
Easy to use with simple controls—ideal for both technical and non-technical users.
Obtain reliable karat value and composition in just seconds.
Durable design with minimal running costs over time.
Meets industry standards for hallmarking and precious metal verification.
On-screen sample images ensure accuracy and build customer trust.
Key Details:
High Accuracy EDXRF Technology
User-Friendly Software Interface
Fast and Non-Destructive Testing
Recommend users
Hallmarking Centers
Jewelry Manufacturers
Pawn Brokers
Refiners & Precious Metal
Government Testing Labs
Technical Specifications
NEO ALFA PC | Specifications |
|---|---|
X ray Tube | Long life, high efficiency, tungsten target 50W, airodynamic air flow cooling system |
High Voltage | Output Voltage : 0 - 50Kv @ 1 mA |
Detector | Hi resolution Proportional Counter Detector |
Collimator | 0.50 mm |
Analysis Range | 30.00% - 99.99% |
Operating Temperature | 15 - 30 C |
Micro Platform | Loading Test Platform with fine - tuning device, the implementation can be easily detected |
CCD | High Resolution, 1.2million Pixel CCD camera |
Power Supply | 110/230 VAC, 50/60 Hz, 120 W |
Dimension | 460X380X460 |
Weight | 30 Kg |
